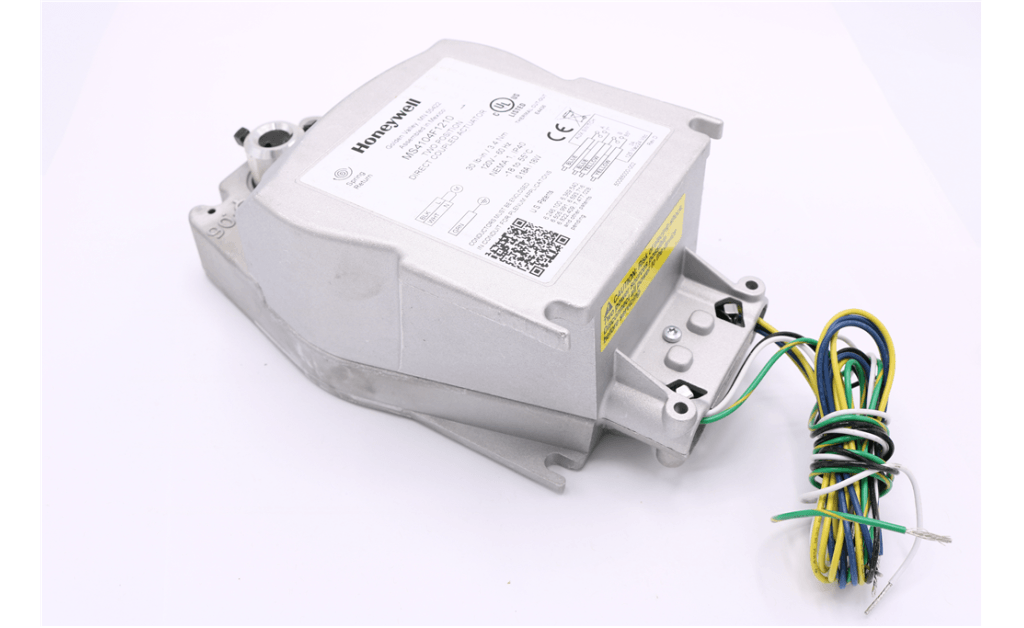

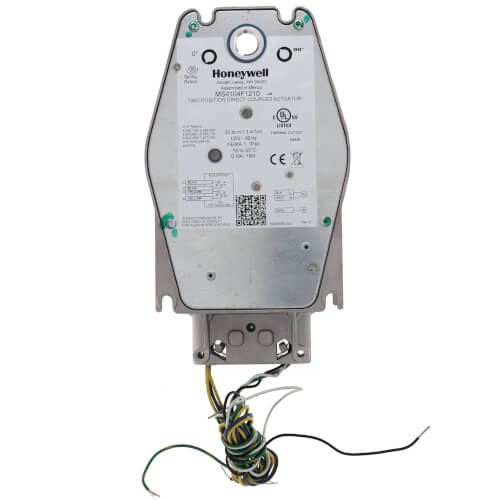

MS4104F1210 Honeywell MS4104F1210 Universal Fire and Smoke Damper

Honeywell Ms4104f1210. Honeywell Nonspring Return Directcoupled Damper Actuators For MS4104F1210 - Direct coupled actuator, spring return, fast acting, 30 Lb./In Fast Acting Fire and Smoke Direct Coupled Actuator Honeywell's Fast-Acting, Two-Position Actuators are line volt (120V), 30 lb-in., spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control)

Shop MS4104F1210 & thousands of other quality products now. The fast-acting actuators close dampers in 15-20 seconds, and the integral spring return ensures the consistent, proper level of torque.

External Actuator Kit, Honeywell MS4104F1210 Act, Product 870663

Links Data Sheet Installation Instructions Dampers, MS4104 Series Popular Products from Honeywell The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring.

MS4104F1210 by HONEYWELL Buy or Repair at Radwell. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring. Honeywell Damper Actuator, Model: MS4104, 0.18 A, 120 VAC, 60 Hz, VA Rating: 18 VA, Hardwired Electrical Connection, 15 s Timing, Aluminum, 30 lb-in Torque, 75 dBA Noise Level, -40 to 140 deg F, IP40 Enclosure, 5 to 95 % Humidity Rating, 5-1/8 in L x 3-1/4 in W x 8-15/16 in H, Spring Return Action, 2-Position, Control Signal: SPST, On-Off Control, Flush Mounting, 30,000 Cycles Operating Cycles.

Products Page 52 Ace Controls & Instrumentation Inc.. Links Data Sheet Installation Instructions Dampers, MS4104 Series Popular Products from Honeywell Building Controls Group is an industry leader in HVAC & Building Automation supply with fast shipping & competitive pricing
